METAL MESH SERIES

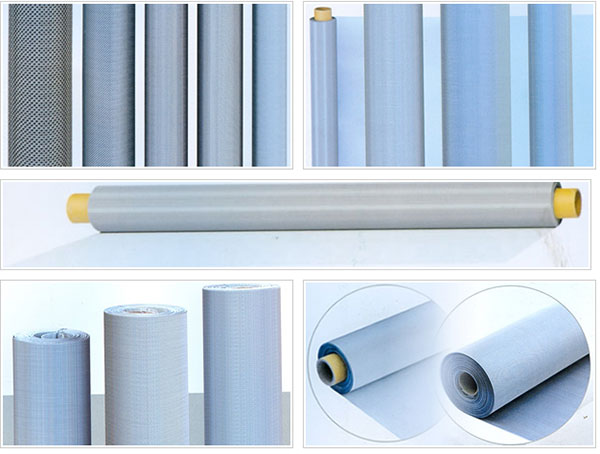

STAINLESS STEEL WIRE MESH

Date:2021-03-19 Clicks:

Stainless steel plain / stainless steel reverse / stainless steel twill / stainless steel twill

Application: petroleum, chemical, automotive electronics, aviation, aerospace, food, medicine and other industries.

Materials: 304, 316, 304L, 316L, 310S, 430, 317L, 904L, Hastelloy, N6, high temperature resistant materials, etc

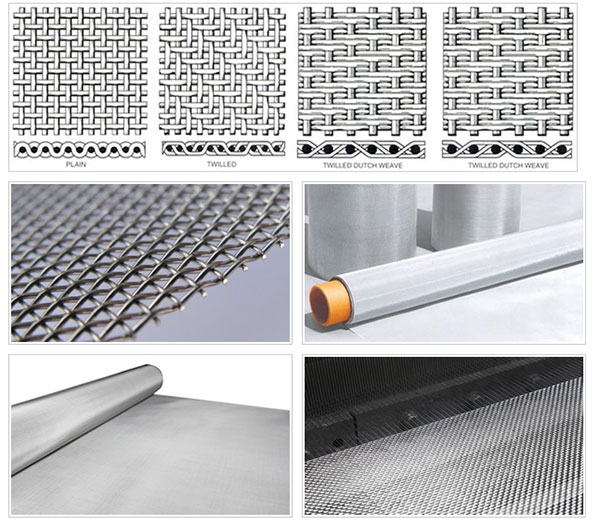

Weaving mode: plain, twill and dense, among which the dense net includes plain dense, twill dense, double diameter silk dense, reverse plain dense, reverse twill dense and optimized combination net.

Performance: acid resistance, alkali resistance, high temperature resistance, wear resistance

Specification:


Mesh Count per Inch

Wire Diameter mm

Aperture Size mm

Open Area

Weight for Stainless Steel (kg/sq m)

2

1.8

10.9

74%

3.22

2

1.6

11.1

76%

2.54

2

1.4

11.3

79%

1.95

3

2

6.467

58%

5.96

3

1.8

6.667

62%

4.83

3

1.6

6.867

66%

3.82

3

1.4

7.067

70%

2.92

4

2

4.35

47%

7.95

4

1.8

4.55

51%

6.44

4

1.6

4.75

56%

5.09

4

1.4

4.95

61%

3.89

4

1.2

5.1

65%

3.11

4

1

5.35

71%

1.99

4

0.9

5.45

74%

1.61

5

1.2

3.83

57%

3.88

5

1

4.08

65%

2.48

6

1.6

2.633

39%

7.63

6

1.4

2.833

45%

5.84

6

1.2

3.033

51%

4.29

6

1

3.233

58%

2.98

6

0.9

3.333

62%

2.41

6

0.8

3.433

66%

1.91

6

0.71

3.523

69%

1.5

8

1.25

1.925

37%

6.21

8

1.12

2.055

42%

4.99

8

1

2.175

47%

3.97

8

0.9

2.275

51%

3.22

8

0.8

2.375

56%

2.54

8

0.71

2.465

60%

2

8

0.63

2.545

64%

1.58

8

0.56

2.615

68%

1.25

10

0.9

1.64

42%

4.02

10

0.8

1.74

47%

3.18

10

0.71

1.83

52%

2.5

10

0.63

1.91

57%

1.97

10

0.56

1.98

61%

1.56

10

0.5

2.04

65%

1.24

12

0.8

1.317

39%

3.82

12

0.71

1.407

44%

3.01

12

0.63

1.487

49%

2.37

12

0.56

1.557

54%

1.87

12

0.5

1.617

58%

1.49

12

0.45

1.667

62%

1.21

14

0.56

1.254

48%

2.18

14

0.5

1.314

52%

1.74

14

0.45

1.364

57%

1.41

14

0.4

1.414

61%

1.11

14

0.355

1.459

65%

0.88

14

0.315

1.499

68%

0.69

16

0.63

0.958

36%

3.15

16

0.56

1.028

42%

2.49

16

0.5

1.088

47%

1.99

16

0.45

1.138

51%

1.61

16

0.4

1.188

56%

1.27

16

0.355

1.233

60%

1

16

0.315

1.273

64%

0.79

18

0.236

1.175

83%

0.5

20

0.56

0.71

31%

3.12

20

0.5

0.77

37%

2.48

20

0.45

0.82

42%

2.01

20

0.4

0.87

47%

1.59

20

0.355

0.915

52%

1.25

20

0.315

0.955

57%

0.99

24

0.45

0.608

33%

2.41

24

0.355

0.703

44%

1.5

24

0.315

0.743

49%

1.18

28

0.355

0.552

37%

1.75

28

0.315

0.592

43%

1.38

30

0.355

0.492

34%

1.88

30

0.315

0.532

39%

1.48

30

0.28

0.567

45%

1.17

30

0.25

0.597

50%

0.93

30

0.224

0.623

54%

0.75

36

0.25

0.456

42%

1.12

36

0.224

0.482

47%

0.9

36

0.212

0.494

49%

0.8

40

0.224

0.411

42%

1

40

0.212

0.435

47%

0.79

40

0.19

0.445

49%

0.72

40

0.132

0.503

79%

0.35

50

0.21

0.298

34%

1.1

50

0.2

0.308

37%

0.99

50

0.19

0.318

39%

0.9

50

0.16

0.348

47%

0.64

50

0.15

0.358

50%

0.56

60

0.18

0.243

33%

0.97

60

0.16

0.263

39%

0.76

60

0.14

0.283

45%

0.58

70

0.15

0.213

34%

0.78

70

0.14

0.223

38%

0.68

70

0.125

0.238

43%

0.54

80

0.14

0.178

31%

0.78

80

0.125

0.193

37%

0.62

100

0.112

0.142

31%

0.62

100

0.1

0.154

37%

0.5

100

0.09

0.164

42%

0.4

100

0.08

0.174

47%

0.32

120

0.09

0.122

33%

0.48

120

0.08

0.132

39%

0.38

120

0.065

0.147

48%

0.25

140

0.08

0.101

31%

0.45

150

0.071

0.098

34%

0.38

150

0.065

0.109

42%

0.27

165

0.05

0.104

46%

0.2

180

0.06

0.081

33%

0.32

180

0.05

0.091

42%

0.22

200

0.05

0.077

37%

0.25

200

0.04

0.087

47%

0.16

230

0.036

0.074

45%

0.15

250

0.04

0.062

37%

0.2

270

0.04

0.054

33%

0.21

270

0.036

0.058

38%

0.17

300*

0.04

0.045

28%

0.24

300*

0.036

0.055

42%

0.13

325*

0.036

0.042

29%

0.21

325

0.028

0.05

41%

0.13

350*

0.03

0.043

34%

0.16

400*

0.03

0.034

27%

0.18

500*

0.025

0.026

26%

0.16

Mesh

Wire Diameter

Weave


Warp

Shute



in

mm

in

mm


12x64

0.023

0.58

0.0165

0.42

Plain

14x88

0.019

0.48

0.012

0.30

Plain

14x110

0.016

0.40

0.011

0.28

Plain

24x110

0.014

0.355

0.010

0.25

Plain

16X200

0.014

0.355

0.010

0.25

Twill

30X150

0.009

0.23

0.007

0.18

Plain

20X200

0.0135

0.34

0.011

0.28

Twill

40X200

0.007

0.18

0.0055

0.14

Plain

20X300

0.010

0.25

0.007

0.18

Twill

30X250

0.010

0.25

0.008

0.20

Twill

20X350

0.010

0.25

0.006

0.15

Twill

20X250

0.010

0.25

0.0082

0.21

Twill

50X600

0.007

0.18

0.0035

0.09

Twill

28X400

0.007

0.18

0.005

0.13

Twill

50X250

0.0055

0.14

0.0045

0.11

Plain

28X500

0.007

0.18

0.0045

0.11

Twill

50X700

0.0055

0.14

0.003

0.076

Twill

80X700

0.004

0.10

0.003

0.076

Twill

100X1000

0.004

0.10

0.002

0.051

Twill

165X800

0.0028

0.071

0.002

0.05

Twill

165X1400

0.0028

0.071

0.0016

0.04

Twill

200X1400

0.0028

0.071

0.0016

0.04

Twill

325X2300

0.0014

0.035

0.001

0.025

Twill
